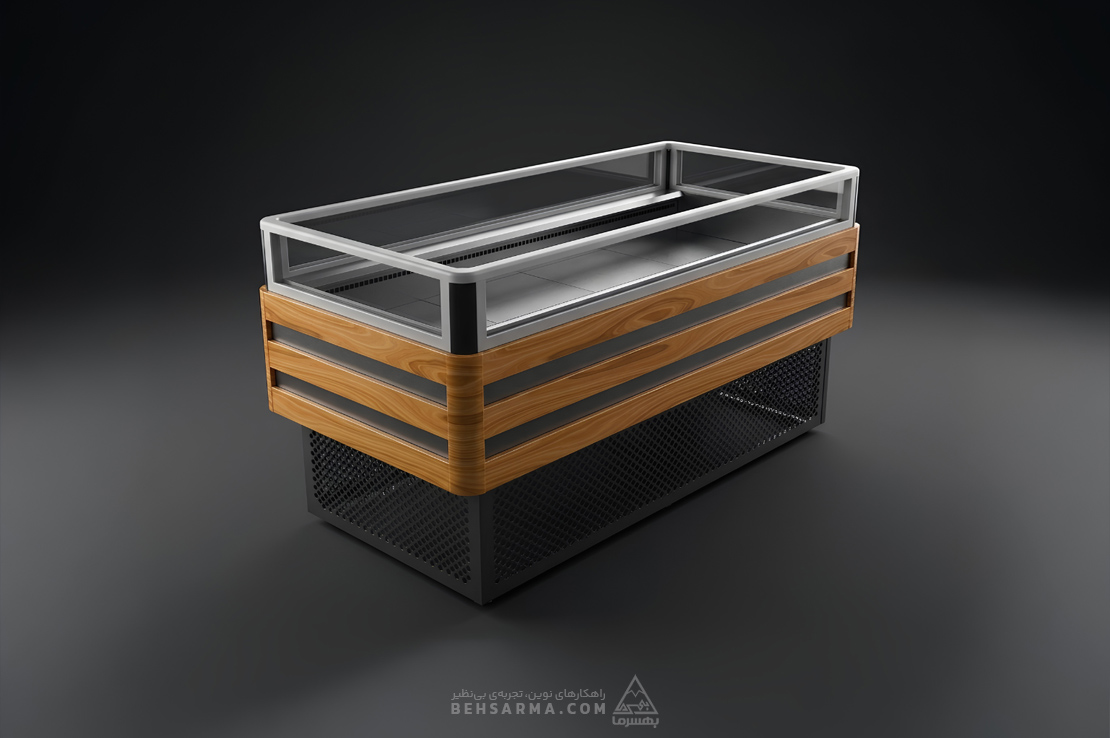

Horizontal multideck refrigerator

Technical specifications:

● Single-sided body width 100 cm and height 110 cm

● Double-sided body width 200 cm and height 110 cm

● Modular lengths of 250 and 375 cm

● Body insulated with integrally injected polyurethane foam

● Night cover included

● Interior and exterior bodies in coated galvanized sheet steel

● Side panels in triple-glazed glass

● Lower fascia in stainless steel sheet

● Bumpers in PVC profile

● Automatic defrost system

● Price label strips included

● Fitted with Bitzer, Danfoss, Refcomp, or Copeland scroll compressors

● Optional PVC-coated wire divider baskets

● Optional stainless steel pipe bumpers (per customer order)

Horizontal Air-curtain refrigerator operating with a central machine room system (Centralized Condensing Unit). This open-front (doorless) model is designed and built for self-service product storage and display.

It is suitable for frozen vegetables, white and red meat and seafood, butter, ready meals, and more. Cabinet design for central machine room Air-curtain refrigerators considers ergonomics and easy access to displayed goods so customers can see all items from a distance and pick up and place products with ease. The Air-curtain refrigerator can be installed as an island in the sales floor or along a wall; the cabinet layout lets you offer greater product variety in a smaller footprint. Air-curtain refrigerators are designed for large and small stores with a wide product range; aisles of 150–200 cm should be allowed around the unit for customer circulation. Length is built to order based on store size or customer requirements. Another design priority is maximizing cabinet space for product display. Moving the refrigeration unit from inside the cabinet to the machine room provides about 40% more usable space than plug-in (self-contained) models. Behsarma engineers also focus on a complete refrigeration cycle, minimal cold loss, and elimination of thermal bridges to improve efficiency and reduce energy use across this product and other supermarket / retail store equipment. Integrally injected polyurethane foam at 40 kg/m³ density and triple-glazed glass on all four cabinet faces support insulation; a night cover retains cold air when the store is closed, limiting energy waste at the end of the day.

All sheet metal used on these refrigerators is finished with electrostatic oven-baked powder coating—one of the most durable industrial coatings, with high resistance to impact, abrasion, and moisture. Cabinet colors can be chosen by product category, store décor, corporate branding, and more. Finnish thermowood fascias are available on request for enhanced visual appeal.

All units can use PVC-coated divider baskets to separate and organize products. Stainless steel pipe bumpers can be fitted at the bottom to protect against shopping trolleys, and PVC bumpers can be mounted on the cabinet body.
