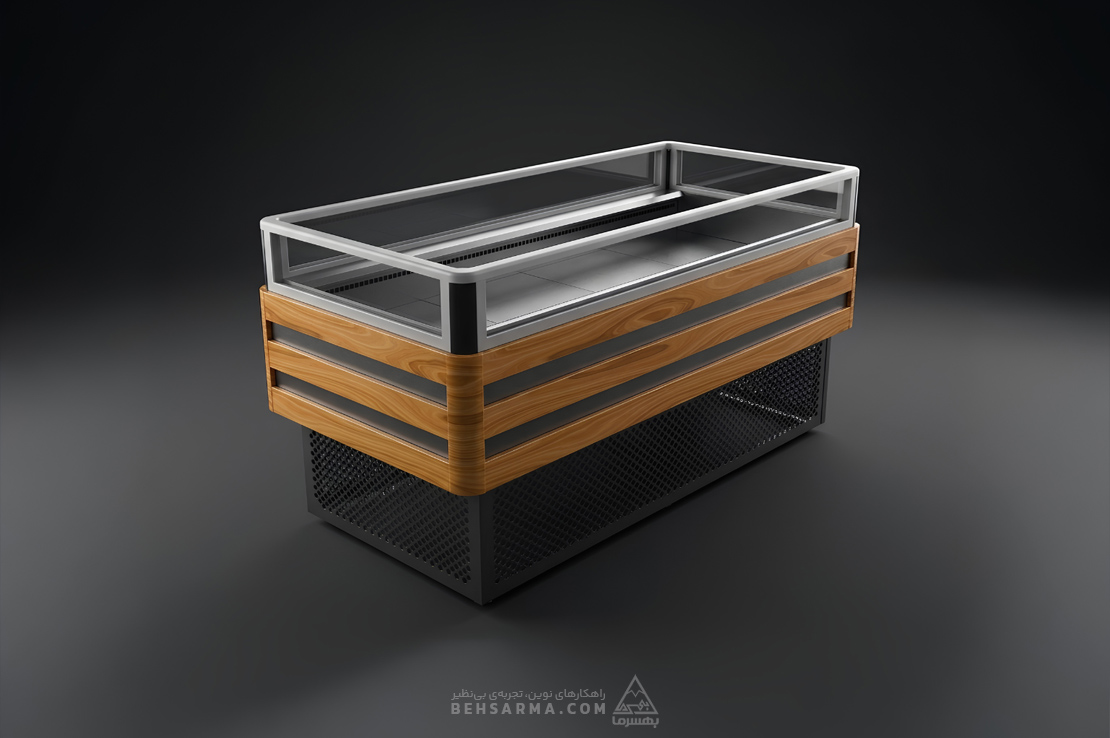

Open multideck freezer

Horizontal multideck freezer () is one of the advanced retail refrigeration solutions in the supermarket and retail equipment sector. This freezer is designed horizontally and is well suited to storing large volumes of frozen products.

Multideck freezer ()s use cold-air flow technology to maintain ideal conditions for frozen foods. Unlike door-type freezers, Multideck freezer ()s have an open front that allows direct, quick access to products. This layout improves usability and gives the sales floor a modern, attractive look. Products remain fully visible to customers, supporting an easier, more engaging shopping experience.

The doorless horizontal freezer can be installed as an island in the sales floor or along a wall; the cabinet design lets customers see a wider variety of products in a compact footprint.

Multideck freezer ()s are designed for large and small stores with a broad product range; allow 120–180 cm aisles for customer circulation. Length is built to order based on store size or customer requirements. Another design priority is maximizing cabinet space for product display.

Multideck freezer () system technology:

The core technology in this freezer is the cold system. A continuous stream of cold air is directed vertically or at an angle from the upper section toward the bottom. This flow acts like an invisible curtain that separates the interior from the store environment. The plays a key role in maintaining stable internal temperature: without a physical door, it limits warm air ingress and cold air loss, significantly reducing energy use while keeping temperature within the required range. The system is designed to lower operating costs, limit thermal shock to food, and preserve product quality over time.

Night cover:

A night cover is a practical accessory for Multideck freezer ()s. It reduces energy use during low-traffic periods, limits cold-air loss when the store is closed, keeps out dust and environmental contaminants, reduces moisture buildup, and simplifies periodic cleaning.

Technical specifications — Multideck freezer ():

Beyond an attractive, user-friendly appearance, this freezer uses quality materials and a robust refrigeration system for reliable long-term performance in varied environments. The technical data reflects careful design, standardized production, and attention to detail.

Behsarma engineers emphasize a complete refrigeration cycle, minimal cold loss, and no thermal bridges to improve freezer efficiency and cut energy use across this product and other supermarket / retail store equipment. Key measures include integrally injected polyurethane foam at 40 kg/m³ density and triple-glazed glass on all four cabinet faces.

All sheet metal on these freezers is finished with electrostatic oven-baked powder coating—a durable industrial finish resistant to impact, abrasion, and moisture. Colors can be matched to product categories, décor, and corporate branding. Thermowood fascias are available on request.

All freezers can use PVC-coated divider baskets to separate and organize products. Stainless steel pipe bumpers at the bottom protect against shopping trolleys; PVC bumpers are mounted on the cabinet body.

Defrost operates off-cycle (Off-Cycle Defrosting) by interrupting the refrigeration cycle, and/or with electric heating defrost (Electric Heating Defrost) using heating elements during cycle interruption. Full technical details are listed below:

Technical specifications:

• Body width 100 cm and height 110 cm
• Lengths of 250 and 380 cm (customizable per customer order)
• Body insulated with integrally injected polyurethane foam at 40 kg/m³ density
• Side panels in triple-glazed glass
• Body in galvanized sheet steel with electrostatic oven-baked powder coating
• Lower fascia in stainless steel sheet
• Bumpers in PVC profile
• Fascia in coated sheet, stainless steel, or thermowood
• Manual night cover
• Automatic defrost system
• Optional PVC-coated wire divider baskets
• Optional stainless steel pipe bumpers (custom)
• Mechanical and electrical components from leading European and Korean brands
• Compatible with semi-hermetic or scroll condensing units
• Optional stainless steel pipe bumpers (per customer order)

Benefits of Multideck freezer ()s:

Multideck freezer ()s offer many advantages that make them popular in stores and food retail outlets. Removing the door and using an minimizes heat exchange between the interior and the store, so the compressor works less and power consumption drops. Key benefits include:

• Open design with easy access
• Improved customer shopping experience
• Stable, uniform temperature
• Longer food shelf life
• Reduced compressor load
• Better product layout and visibility
• Appropriate internal humidity
• Less surface freezing on products
• Shorter shopping time and higher customer satisfaction
• Lower wear and maintenance costs

Applications of Multideck freezer ()s:

Horizontal multideck freezer ()s are used across a wide range of commercial and industrial settings. Common applications include:

• Supermarkets and hypermarkets: Display and store frozen foods such as meat, poultry, vegetables, and ice cream in an orderly, accessible layout

• Protein and meat retail: Hygienic, organized storage of meat and protein products

• Restaurants, quick-service outlets, and hotels: Fast access to frozen ingredients and smoother kitchen preparation

• Food processing and packaging plants: Temporary holding of frozen products before packaging or distribution

• Fish and seafood retail: Stable-temperature storage of frozen fish and seafood under hygienic conditions

Important maintenance notes for Multideck freezer ()s:

Regular maintenance is essential for reliable performance and long service life. Clean condenser coils and internal surfaces regularly—dust reduces cooling efficiency. Periodically inspect fans, filters, thermostats, and temperature sensors. Check that the cold flows evenly; any disruption affects overall performance. Use the night cover consistently and avoid overloading the cabinet to maintain efficiency and control energy costs.

Compressor configuration for Horizontal multideck freezer ()s:

Multideck freezer ()s are offered with central machine room or self-contained (plug-in) refrigeration. Both share a similar appearance and structure and use technology to maintain low temperature and limit heat exchange with the store. The main difference is how the refrigeration system is arranged.

With a central system, cooling is supplied from a central plant, usually installed in a separate area or outside the sales floor. This suits large stores and sites with high refrigeration demand. Self-contained or portable models house the compressor and refrigeration components within the cabinet.

Multideck freezer () pricing:

Price depends on compressor type (central or self-contained), dimensions, cabinet materials, refrigeration equipment, and custom options. To receive accurate, up-to-date pricing tailored to your store, submit a price inquiry form and our technical sales team will contact you promptly. For specialist advice on choosing the right model for your layout and capacity, contact Behsarma support by phone.
